K097007

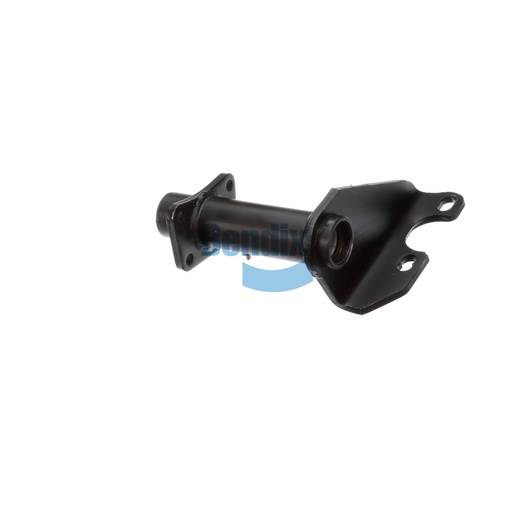

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly plays a crucial role in the Bendix Foundation Drum Brakes system, providing essential support for air chambers and camshafts. This assembly features a full arm style and single gusset design, delivering the necessary strength for dependable braking performance. The nylon bushings used in both inboard and outboard applications enhance the durability and longevity of the part. With a centerline to centerline length of 11.50 inches and a camshaft bracket angle of 104° clockwise, it is specifically engineered to fit various truck models seamlessly. Manufactured in the USA, this assembly meets stringent quality standards. For those in search of genuine Bendix OEM parts, Source One Parts Center offers a wide selection of high-quality components that ensure your commercial vehicle operates smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
104° CW
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
830230
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.39 lb
