$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

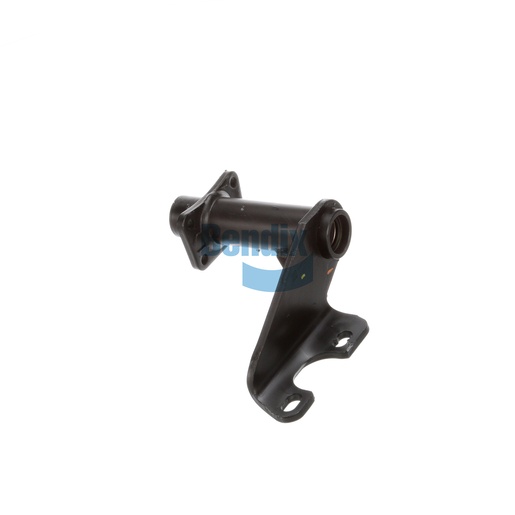

The Bracket Assembly from Bendix is expertly designed to provide robust support for your foundation drum brakes, ensuring optimal performance and safety on the road. Crafted with a single gusset and scalloped arm style, this assembly is built to withstand rigorous conditions, featuring bronze bushings that enhance durability and resistance to wear. With a slack length range of 5.50 to 6.00 inches and a camshaft bracket angle of 90° counterclockwise, it offers versatility for various applications, making it essential for fleet maintenance. Weighing 5.5 kg (12.02 lb), this bracket assembly is engineered to endure the demands of commercial vehicle operation while providing reliable support for your braking system. Its thoughtful design allows for straightforward installation and maintenance, ensuring that your vehicles remain operational with minimal downtime. Investing in this assembly guarantees improved braking performance and safety. Source One Parts Center is the optimal choice for genuine Bendix OEM parts, where quality and reliability are assured.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.02 lb
