$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

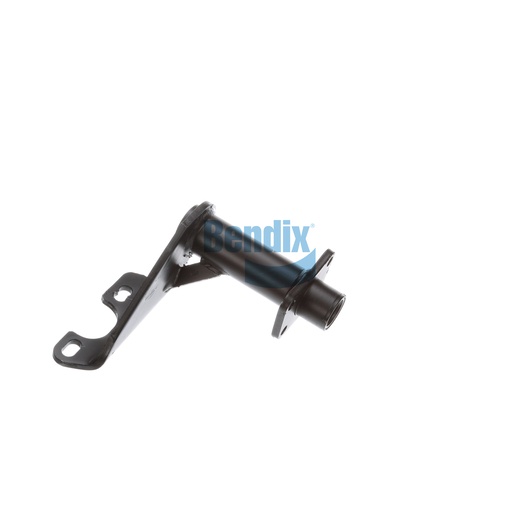

The Bendix Bracket Assembly is expertly designed to provide superior support for air chambers and camshafts in drum brake systems, ensuring reliable performance in demanding conditions. Made in the USA, this assembly features a single gusset and a scalloped arm style, providing enhanced durability and structural integrity. With both inboard and outboard bushings made of high-quality bronze, this bracket minimizes friction and wear, optimizing its performance. The assembly has a camshaft bracket angle of 90° CW and a slack length adjustment range of 5.50 to 6.00 inches, accommodating various installation needs. With a centerline length of 11.50 inches, it is well-suited for a variety of commercial truck applications. This bracket is essential for ensuring the effectiveness and safety of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, giving you peace of mind and quality assurance for your commercial vehicle repairs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.97 lb
