K098654

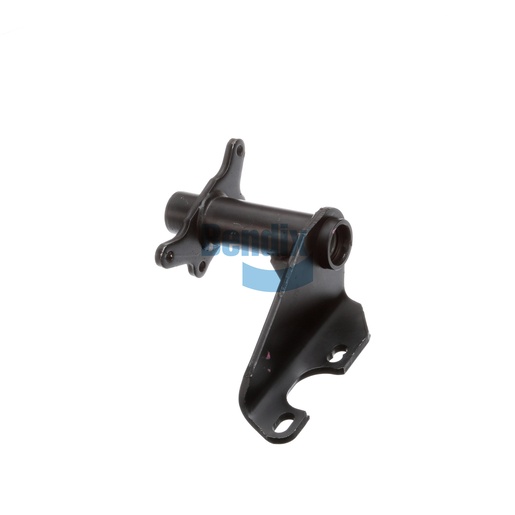

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an integral component for ensuring the proper functioning of your foundation drum brakes. This assembly features a full arm style designed to provide excellent support while maintaining weight efficiency, weighing just 12.81 lbs. Constructed with high-quality nylon bushings, it guarantees durability and resistance against wear even under the most demanding conditions. With a camshaft bracket angle of 104 degrees counterclockwise, it allows for precise adjustment and alignment, which is essential for optimal braking performance. The slack length ranges from 5.50 to 6.00 inches, providing flexibility for various vehicles and setups. This bracket assembly is engineered to enhance safety and performance, making it a reliable choice for any commercial vehicle. Source One Parts Center is the best place to purchase genuine Bendix OEM parts for commercial vehicles, ensuring you receive components that meet the highest standards of quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
104° CCW
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.81 lb
