K098696
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

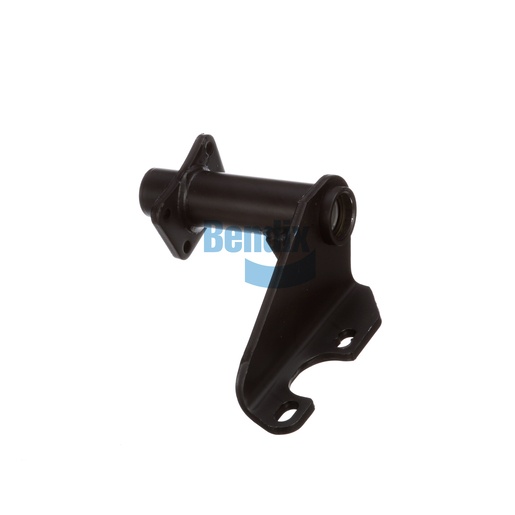

Enhance your truck's braking performance with the Bendix Bracket Assembly, designed to provide exceptional support for brake components. Featuring a single gusset and full arm style, this assembly is crafted with high-quality nylon and bronze bushings, which significantly reduce wear and friction. The well-engineered 104° counter-clockwise camshaft bracket angle ensures optimal alignment for improved braking efficiency. With a weight of 12.5 lbs, it is easy to install while maintaining the strength needed for demanding conditions. This bracket assembly is a crucial part of your brake system, ensuring safety and reliability on the road. Source One Parts Center is your go-to source for genuine Bendix OEM parts, ensuring you receive only the highest quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
104° CCW
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
