$459.95
$551.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

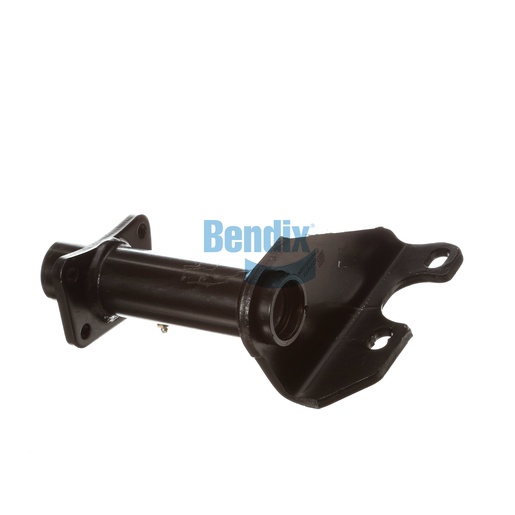

The Bracket Assembly from Bendix is a crucial component designed to provide robust support within your vehicle's braking system. With a full arm style and durable nylon and bronze bushings, it ensures long-lasting performance and stability. The camshaft bracket angle of 104° CW and adjustable slack length from 5.50 to 6.00 inches allow for precise fitment and functionality. Weighing just 5.7 kg (12.55 lb), this assembly is designed for easy installation and maintenance, making it an ideal choice for fleet management. For genuine Bendix OEM parts, Source One Parts Center is your trusted partner, delivering quality products that keep your commercial vehicles running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
104° CW
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.55 lb
