K098854

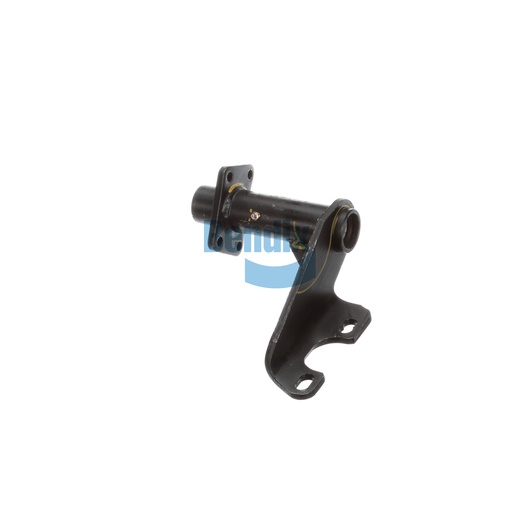

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of your truck's braking system, designed to provide exceptional support and stability for critical components. This assembly features a single gusset and scalloped arm style, ensuring maximum durability and strength. With nylon bushings, it minimizes wear and friction, enhancing the longevity and efficiency of your brake system. The camshaft bracket angle of 40° counter-clockwise is optimized for effective brake operation, while the lightweight design (weighing only 11.53 lbs) allows for easy installation. For the best selection of genuine Bendix OEM parts, trust Source One Parts Center, where quality and reliability are our top priorities.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Camshaft Bracket Angle
326° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.53 lb
