K098907

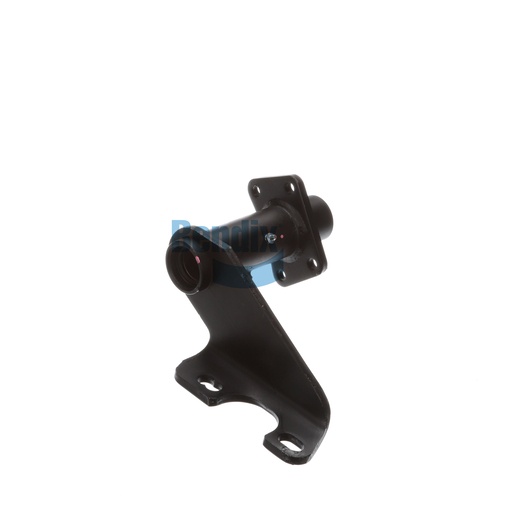

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component designed to support the air chamber and camshaft in your truck's braking system. This assembly is engineered for durability and reliability, featuring a scalloped arm style and robust construction that withstands the rigorous demands of commercial applications. With a camshaft bracket angle of 326° CW, it ensures efficient operation of your braking system, enhancing both performance and safety. The use of high-quality materials, including bronze bushings, further extends the lifespan of this component, making it a smart investment for fleet owners and individual truck operators. Choose Source One Parts Center for your Bendix OEM parts; we guarantee the best quality and performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.50
Camshaft Bracket Angle
326° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.3 lb
