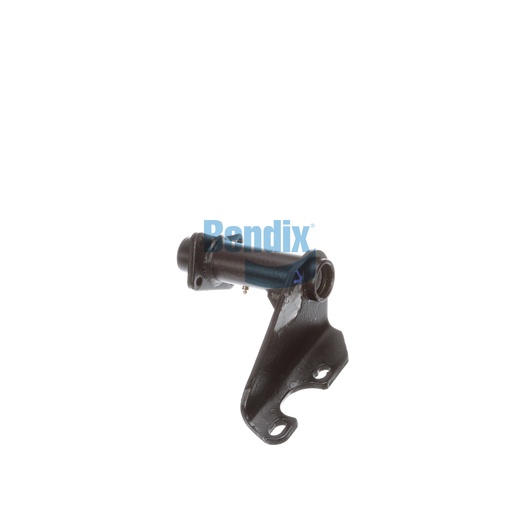

K099912
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your vehicle's braking system with the Bendix Bracket Assembly, a key component for foundation drum brakes. This assembly is engineered in the United States, showcasing Bendix's commitment to quality and durability. With advanced design features such as nylon bushings and a robust build, this bracket assembly ensures a secure fit and efficient operation under heavy loads. Weighing 5.6 kg, it is crafted to enhance the alignment and functionality of the camshaft, which is crucial for optimal braking performance. This assembly is an essential choice for fleet operators and truck mechanics who prioritize safety and reliability. Trust Source One Parts Center for your Bendix OEM parts; our dedication to quality ensures you receive only the best for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.42 lb
