K099913
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

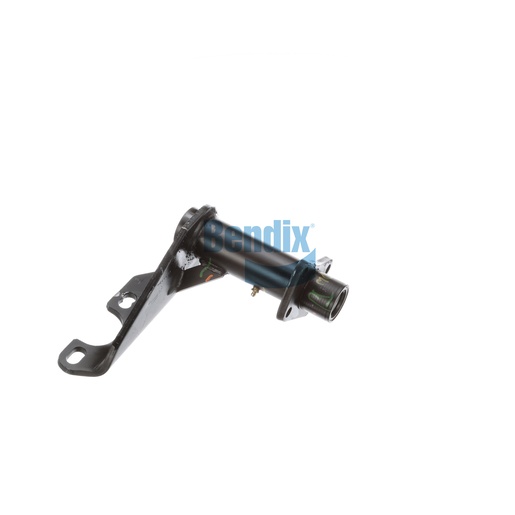

The Bendix Bracket Assembly is meticulously designed for foundation drum brakes, offering unmatched strength and reliability for commercial vehicles. With its full arm style and single gusset design, this assembly is built to endure the challenges of heavy-duty applications. The nylon bushings in both the inboard and outboard positions provide excellent wear resistance, contributing to long-lasting performance. Featuring a camshaft bracket angle of 56° CW and a slack length of 5.50 to 6.00 inches, this assembly ensures a precise fit in your braking system, enhancing overall efficiency. Weighing 5.6 kg, it is robust yet manageable for easy installation. For those seeking genuine Bendix OEM parts, Source One Parts Center is the ideal source for reliable components and exceptional customer service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.4 lb
