$269.95
$323.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

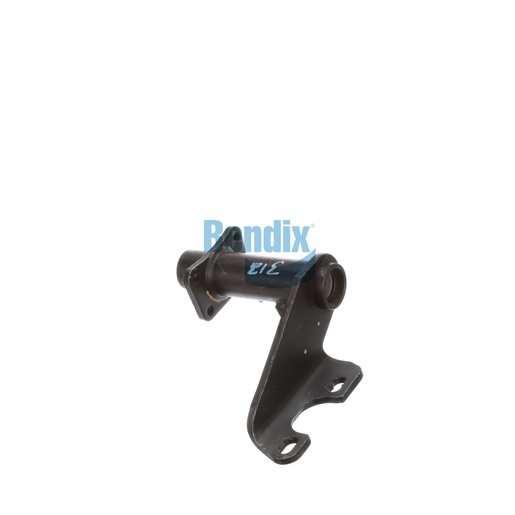

The Bendix Bracket Assembly is expertly designed for commercial vehicles, providing essential support to your drum brake system. Constructed with a scalloped arm style and durable nylon bushings, this assembly offers both strength and lightweight properties, making it ideal for heavy-duty applications. With a camshaft bracket angle of 90° counterclockwise, it ensures precise alignment during installation, enhancing overall braking efficiency. This bracket's length ranges from 5.50 to 6.00 inches, allowing for adaptability to different setups. Weighing 11.5 lbs, it strikes a perfect balance between robustness and manageability. The single gusset design adds to its durability, making it a reliable choice for fleet operators seeking dependable brake performance. Choose this bracket assembly for a significant boost in your braking system's reliability. For genuine Bendix OEM parts, Source One Parts Center is your ultimate destination, ensuring quality and service with every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.5 lb
