$269.95
$323.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

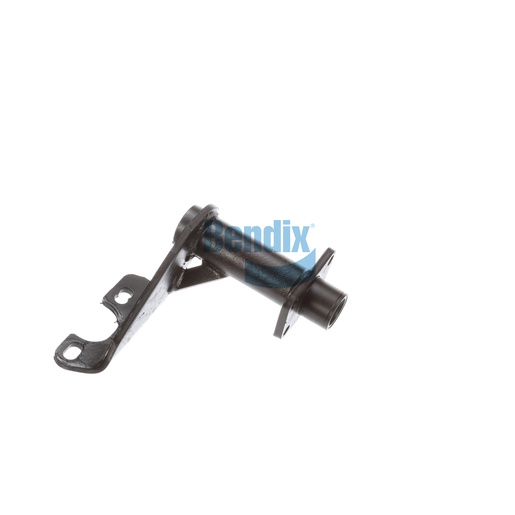

The Bendix Bracket Assembly is a critical component for foundation drum brakes, designed to provide robust support and enhance braking efficiency. With a scalloped arm style and a single gusset design, this assembly is built to handle the rigorous demands of heavy-duty applications. The camshaft bracket angle of 90° CW and a centerline length of 11.50 inches ensure precise fitment and alignment for optimal brake function. Made with durable nylon bushings, this bracket assembly promotes longevity and reduces maintenance needs, making it an excellent choice for fleet managers. When seeking quality and reliability, Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring your commercial vehicles run safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.59 lb
