K100106

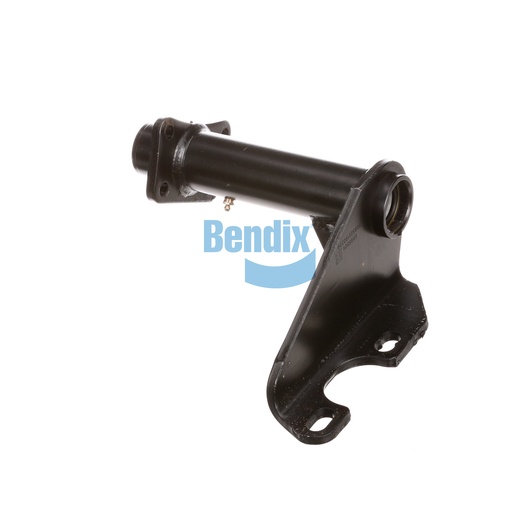

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is a vital component of the foundation drum brake system, providing essential support and alignment for the braking mechanism. Engineered with a full arm style and durable nylon bushings, it is built to withstand the challenges of heavy-duty applications. The assembly's design promotes efficiency and reduces wear, ensuring long-lasting performance under stress. Easy to install, it allows for quick replacements, minimizing downtime for your fleet. Choose Source One Parts Center for your Bendix OEM parts, where you can find reliable components that meet the highest quality standards in the industry.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.25 lb
