K100138

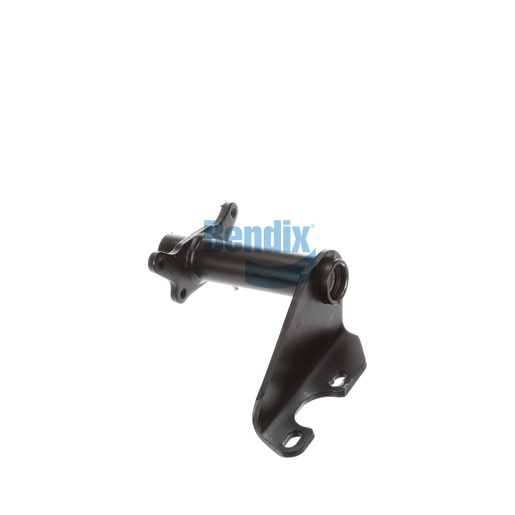

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential support component for your foundation drum brakes, engineered to provide reliable performance under demanding conditions. With a full arm style and durable nylon bushings, this assembly is designed to withstand the challenges of heavy-duty applications. The camshaft bracket angle of 80 degrees counterclockwise allows for precise alignment, enhancing braking efficiency and reliability. Its slack length ranges from 5.50 to 6.00 inches, providing versatility for various vehicle setups. Weighing 13.5 lbs, it is both lightweight and strong, facilitating easy installation without compromising on performance. By choosing this bracket assembly, you are prioritizing the safety and effectiveness of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts for commercial vehicles, ensuring you receive components that meet rigorous quality standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.5 lb
