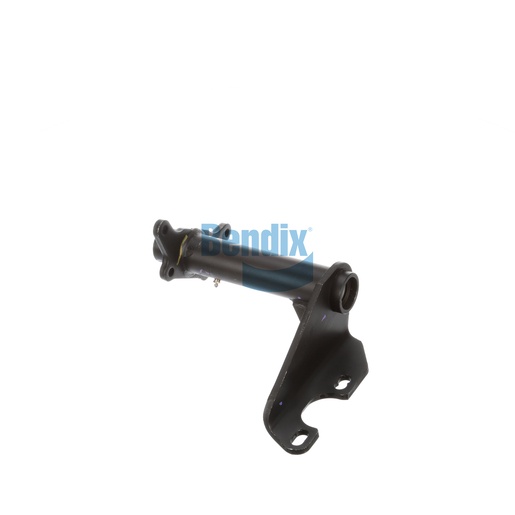

K102618
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide robust support for the air chamber and camshaft in your commercial vehicle's braking system. With a full arm style and single gusset design, this bracket ensures exceptional stability and durability, even under the toughest conditions. Its nylon bushings provide smooth operation and reduce friction, enhancing performance and longevity. This assembly measures 15.00 inches from centerline to centerline, allowing for a precise installation that optimizes the function of your braking system. Built to meet the high standards of quality and reliability, this bracket is a crucial addition to any fleet of heavy-duty trucks. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best place to ensure you receive top-quality components tailored to your vehicle's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.84 lb
