$409.95
$491.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

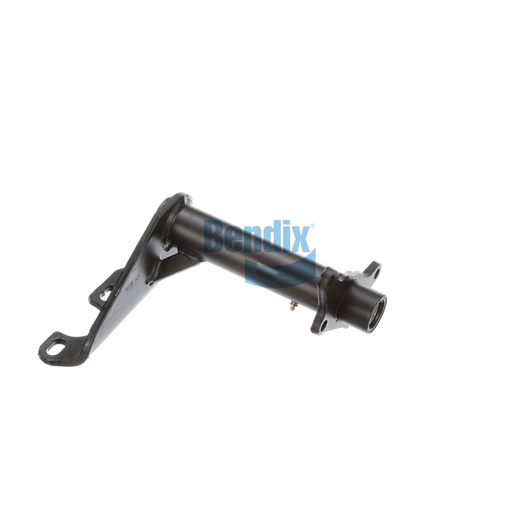

Bendix's Bracket Assembly is engineered for foundation drum brakes, delivering exceptional strength and reliability needed for heavy-duty applications. This assembly features a full arm style with a single gusset, crafted from high-quality materials to ensure durability and optimal performance under various load conditions. The precise camshaft bracket angle of 56° CW and a slack length adjustable between 5.50 to 6.00 inches provide flexibility for different vehicle configurations. With dimensions of 14.37 inches in width and 11.5 inches in height, this bracket is designed for easy installation. It plays a critical role in maintaining the integrity of your braking system, ensuring safety and performance. Source One Parts Center is your best choice for acquiring authentic Bendix OEM parts, guaranteeing that your commercial vehicle remains reliable and efficient.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.8 lb
