$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

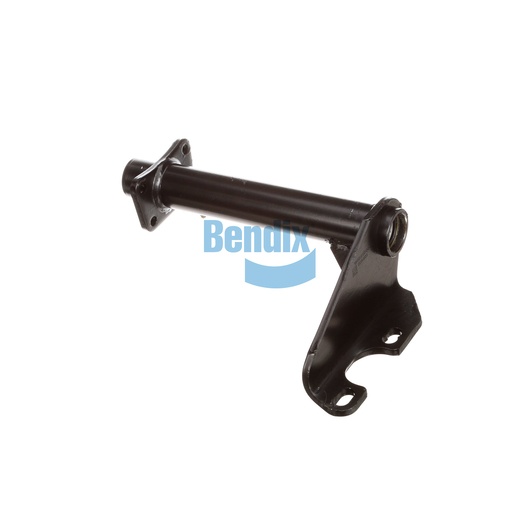

The Bendix Bracket Assembly is specifically engineered to enhance the performance and reliability of your commercial vehicle's drum brake system. This assembly features a full arm style and single gusset design that provides exceptional strength and stability, ensuring that your braking components are secure and aligned correctly. The nylon and bronze bushings contribute to its durability, reducing friction and wear over time. With a camshaft bracket angle of 90° CCW, this assembly allows for precise alignment, which is crucial for effective brake operation. Choosing this bracket assembly means investing in a product that meets the highest standards of safety and efficiency. Source One Parts Center is your premier source for genuine Bendix OEM parts, ensuring you receive quality components for your truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.85 lb
