$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

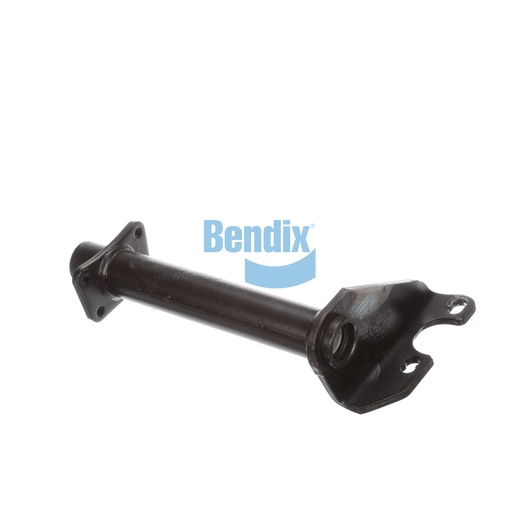

The Bracket Assembly is a crucial support component for foundation drum brakes, designed to enhance the functionality and reliability of the braking system. Built with high-strength materials, this assembly ensures that brake components are securely mounted and positioned for optimal performance. Its single gusset and full arm style contribute to its durability, allowing it to withstand the pressures of heavy-duty applications. This bracket assembly is essential for maintaining the structural integrity of the braking system, which is vital for safety on the road. When sourcing quality parts, Source One Parts Center is the top choice for genuine Bendix OEM parts, ensuring your vehicle's braking system operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
16.57 lb
