K102632
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

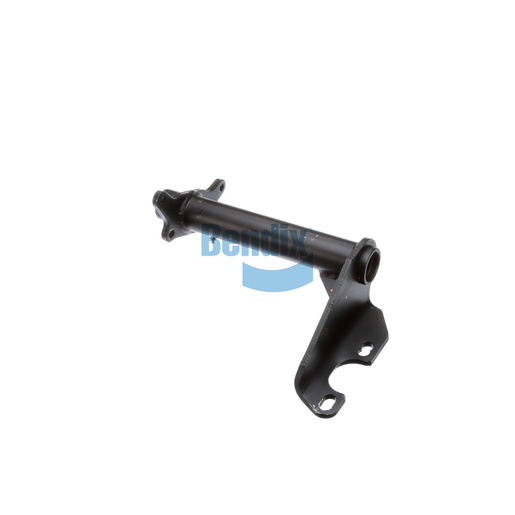

The Bendix Bracket Assembly is an essential component crafted to support the integrity and performance of your commercial vehicle's drum brake system. With its full arm style and single gusset design, this assembly provides robust strength and stability, crucial for effective braking performance. The nylon and bronze bushings enhance durability and reduce wear, ensuring longevity even under demanding conditions. Designed with a precise camshaft bracket angle of 64° CCW, this assembly allows for accurate alignment, which is critical for the smooth operation of your brake system. Choosing this bracket assembly is a smart investment in your vehicle's safety and efficiency. For genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring quality and reliability for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.9 lb
