K102633

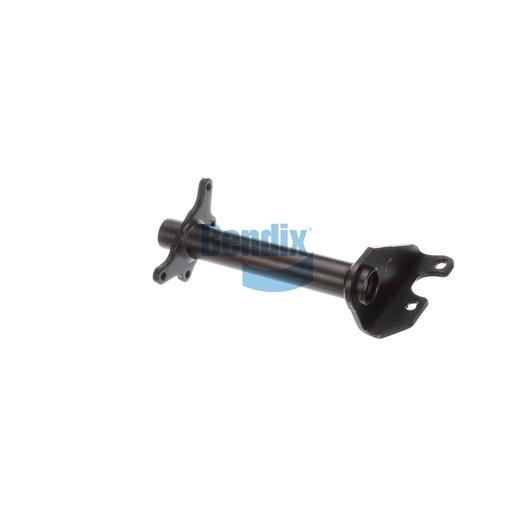

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a key component in your truck's drum brake system, designed to provide stability and support for optimal braking performance. Featuring a full arm style and single gusset design, it ensures secure attachment of the brake components. With a camshaft bracket angle of 64° clockwise, it is engineered for precise alignment. Measuring 17.75 inches centerline to centerline and weighing 15.8 pounds, this assembly is both robust and manageable for installation. For the best selection of genuine Bendix OEM parts, trust Source One Parts Center for quality that enhances your vehicle's performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.8 lb
