$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

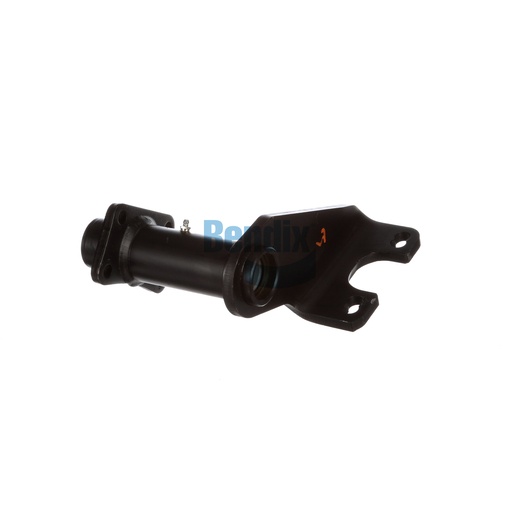

The Bracket Assembly from Bendix is engineered to provide essential support for air chambers and camshafts in drum brake applications. Made from high-strength materials, this bracket offers durability and reliability, ensuring a secure fit that enhances the overall braking system performance. Its design features nylon bushings for both inboard and outboard positions, which significantly reduces friction and wear over time. This product simplifies installation and is compatible with a variety of commercial truck models, making it a practical choice for fleet maintenance and repairs. Investing in high-quality components like this bracket assembly is key to maintaining optimal braking efficiency and safety on the road. At Source One Parts Center, we offer a wide selection of authentic Bendix parts, ensuring you have access to the best components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.687 IN
Length (Centerline to Centerline) [IN]
11.07
Camshaft Bracket Angle
312° CW
Gusset Angle
40°
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.3 lb
