K103678

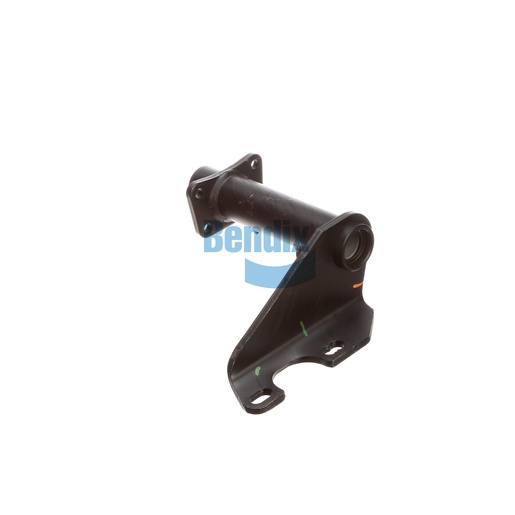

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your truck's braking system with the Bendix Bracket Assembly, specifically designed for robust support and stability in foundation drum brakes. Its single gusset design and full arm style ensure optimal strength and reliability, making it perfect for heavy-duty applications. Crafted to meet OEM specifications, this assembly guarantees a precise fit and straightforward installation, reducing downtime for your fleet. Built to withstand the rigors of commercial use, this bracket plays a crucial role in maintaining your vehicle's braking efficiency and safety. Trust Bendix for high-quality components that perform. Source One Parts Center is your best source for genuine Bendix parts, ensuring you receive the top-tier products your commercial vehicle deserves.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.75
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.89 lb
