K103984

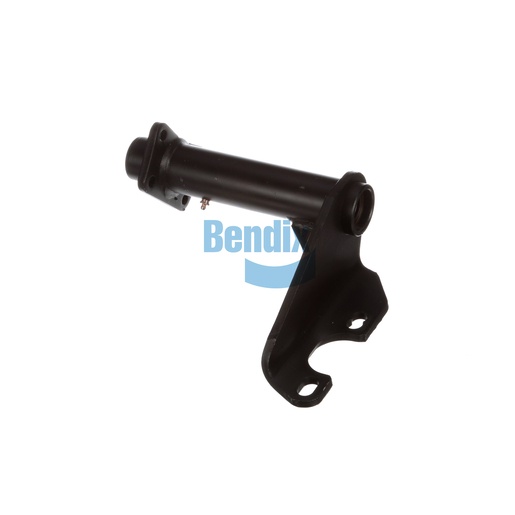

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial component for maintaining the structural integrity of Bendix foundation drum brakes. Its design features a full arm style and durable nylon bushings, providing exceptional support and stability under heavy loads. With a length of 14.31 inches and a camshaft bracket angle of 44° counterclockwise, it offers versatility in installation while enhancing the overall efficiency of the braking system. This assembly ensures that the air chamber and camshaft are securely positioned, allowing for optimal brake function. Choosing this Bracket Assembly means prioritizing safety and performance in your vehicle's braking system. For genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Camshaft Bracket Angle
44° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.75 lb
