$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

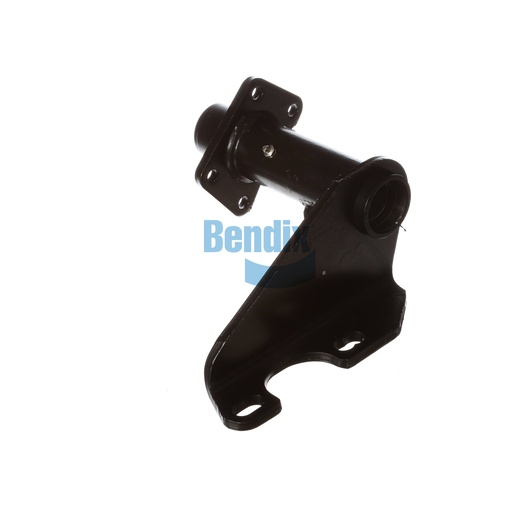

The Bendix Bracket Assembly is designed to provide essential support in foundation drum brake systems, ensuring optimal performance and reliability. This assembly, made in the USA, features a single gusset design and a full arm style, which enhance its strength and stability under heavy loads. With a camshaft bracket angle that allows for precise alignment, it ensures that your braking system operates efficiently. The assembly's adjustable slack length of 5.50 to 6.00 inches makes it versatile for various applications, while its length of 11.50 inches from centerline to centerline provides ample clearance for effective brake operation. Built with durable materials, this bracket helps to minimize wear and extend the lifespan of your braking components. Upgrade your braking system with this reliable assembly to ensure safety and efficiency on the road. Source One Parts Center is the top choice for genuine Bendix OEM parts, delivering the quality and performance you need for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Camshaft Bracket Angle
312° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
12.7 lb
