$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

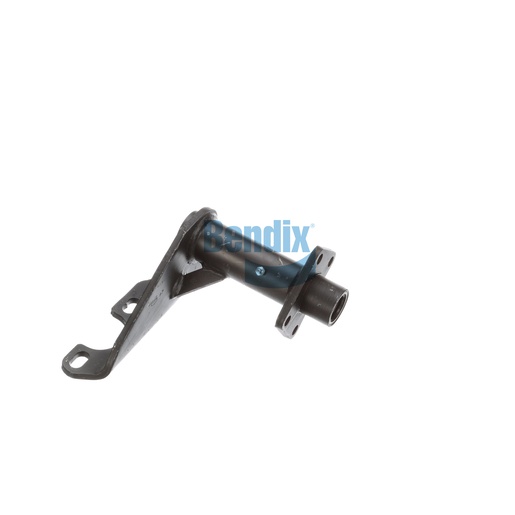

The Bracket Assembly is a crucial part of your vehicle's braking system, providing the necessary support and alignment for effective brake operation. This assembly features a full arm style with a camshaft bracket angle of 312° CW, ensuring that your braking components work together seamlessly. With its durable construction made from high-quality materials, this bracket assembly is designed to withstand the demands of commercial use, offering you peace of mind on the road. It measures 11.50 inches from centerline to centerline, making it an ideal fit for various applications. By choosing this bracket assembly, you are investing in a reliable component that enhances the overall safety and effectiveness of your braking system. Source One Parts Center is the leading source for genuine Bendix OEM parts, providing you with the best options for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Camshaft Bracket Angle
312° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
12.77 lb
