$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

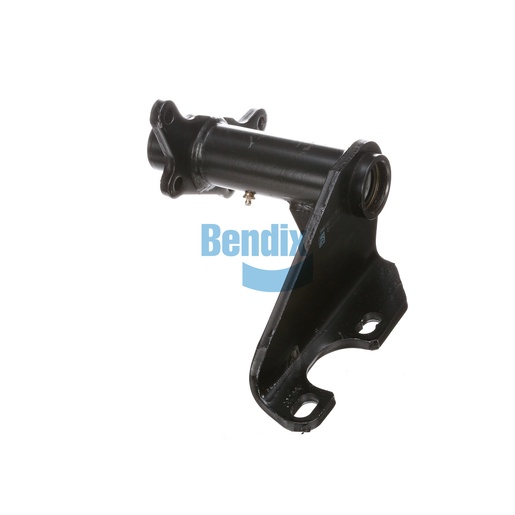

The Bendix Bracket Assembly is designed to provide robust support for your truck's braking system. With a full arm style and single gusset design, this assembly ensures durability and reliability in demanding conditions. The nylon bushings minimize wear and facilitate smooth operation, making it a practical choice for any commercial vehicle. Its precise dimensions ensure a perfect fit, allowing for easy installation and maintenance. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.8 lb
