K103999

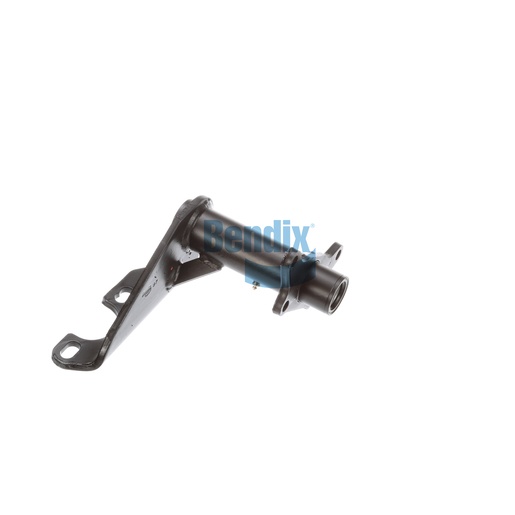

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component designed to provide essential support for air chambers and camshafts within the braking systems of commercial vehicles. This assembly features a full arm style with a single gusset, engineered for maximum stability and alignment, which is vital for effective brake operation. With a slack length adjustment range of 5.50 to 6.00 inches and a camshaft bracket angle of 56° CW, it is adaptable for various truck configurations. Constructed from high-quality materials, it ensures longevity and durability under demanding conditions. When selecting Bendix parts, Source One Parts Center is the premier destination for genuine OEM components that guarantee safety and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.7 lb
