K104242

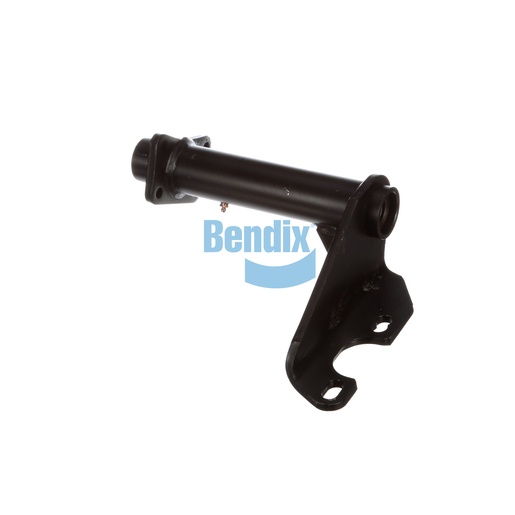

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a critical component in supporting various parts of your Bendix brake system, providing stability and alignment for optimal performance. Designed with precision, this robust assembly ensures that the brake components are held firmly in place, allowing for efficient operation during braking. With features such as a nylon bushing and a gusseted design, it offers enhanced durability and resistance to wear, even under heavy loads and challenging conditions. This bracket assembly is essential for maintaining the overall integrity of the brake system, ensuring that your commercial vehicle operates safely and reliably. At Source One Parts Center, we offer a comprehensive selection of genuine Bendix OEM parts, including this bracket assembly, to help you keep your truck in peak operating condition.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.25
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
59° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.83 lb
