K104243
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

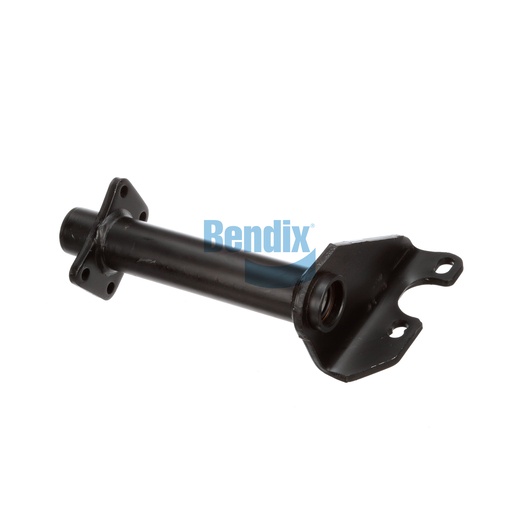

This Bracket Assembly is an integral part of the foundation drum brake system, designed to provide robust support for various braking components. Featuring a single gusset and a full arm style, it is built to endure the heavy demands of commercial vehicle operations. The assembly is crafted from high-quality materials, ensuring durability and reliability. Designed with a camshaft bracket angle of 59° clockwise, it guarantees optimal alignment for effective braking performance. With a gross weight of 6.7 kg, this assembly offers a solid solution for maintaining your braking system’s efficiency. For dependable brake system components, Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, ensuring you receive the best quality for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.25
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
59° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.82 lb
