$169.95
$203.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

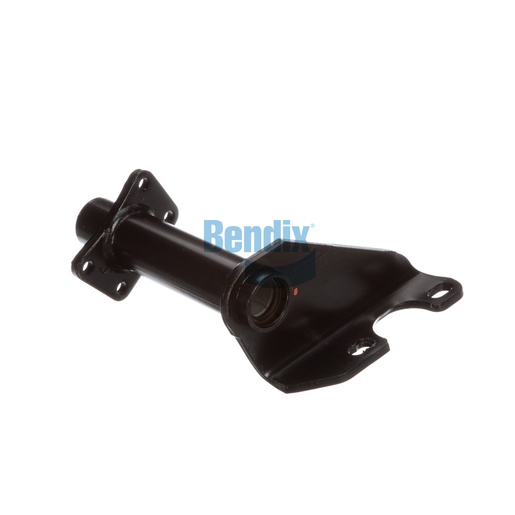

The Bracket Assembly from Bendix is crafted for foundation drum brakes, providing the essential support and strength needed for reliable braking performance. Featuring a full arm style and a single gusset design, this assembly is engineered to withstand heavy loads and demanding conditions. With a camshaft bracket angle of 60° CW and dimensions of 12.50 inches in length from centerline to centerline, it ensures precise alignment and optimal functionality. Weighing 13.0 lbs, this bracket assembly is built for durability and longevity, making it a dependable choice for commercial vehicles. For sourcing genuine Bendix OEM parts, Source One Parts Center is your best option, ensuring you receive authentic components that enhance your vehicle's reliability and efficiency.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13 lb
