K104252

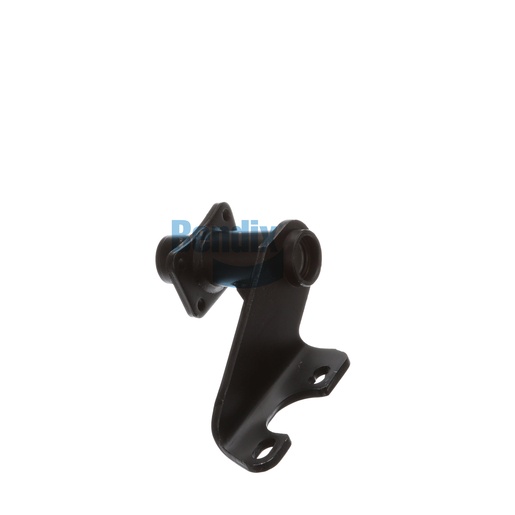

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential component in the foundation drum brakes, providing crucial structural support and stability. Designed with a single gusset and scalloped arm style, this assembly is built to withstand the rigors of heavy-duty use, ensuring reliable performance. Its nylon and bronze bushings contribute to smooth operation and reduced wear, enhancing the longevity of your braking system. Weighing 4.8 kg, this assembly is straightforward to install, making it an ideal choice for maintenance or upgrades. By providing essential support for the brake components, this bracket assembly significantly contributes to overall vehicle safety and performance. Source One Parts Center is your best choice for genuine Bendix OEM parts, ensuring the quality and reliability of your braking system.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Camshaft Bracket Angle
90° CCW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.48 lb
