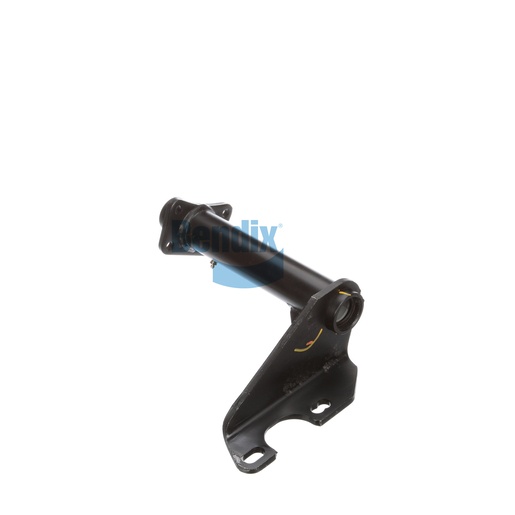

K104378
Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial component in the braking system of commercial vehicles, designed to provide the necessary support and stability under various conditions. Constructed with a single gusset and full arm style, this assembly features a 40° gusset angle, ensuring robust performance. The use of high-quality nylon bushings helps to minimize wear and enhance operational efficiency. With an adjustable slack length of 5.50 to 6.00 inches, it is versatile enough to fit multiple configurations. Weighing 14.8 lbs, it is both sturdy and easy to handle. For sourcing high-quality Bendix OEM parts, Source One Parts Center is your best option, ensuring your vehicles are equipped with the best components available.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Harmonized System (HS) Code
830230
Country of Origin
United States
Weight
14.8 lb
