K104578

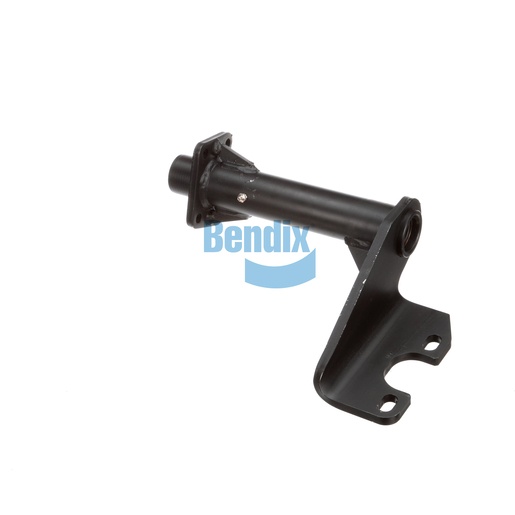

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide exceptional support for your vehicle's braking system, ensuring optimal performance and reliability. Featuring a triple gusset design and durable nylon bushings, this assembly is built to withstand the rigorous demands of commercial vehicles. With an adjustable slack length and a camshaft bracket angle of 337° CCW, this bracket allows for precise installation and adaptability across various applications. Its robust construction guarantees long-lasting service, reducing the need for frequent replacements. For genuine Bendix OEM parts like this assembly, Source One Parts Center is your top choice, providing quality products that keep your commercial vehicles operating safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Centerline to Centerline) [IN]
17.44
Length (Basic Weld Set)
2.563 IN
Camshaft Bracket Angle
337° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Triple
Country of Origin
United States
Weight
16.88 lb
