K104662

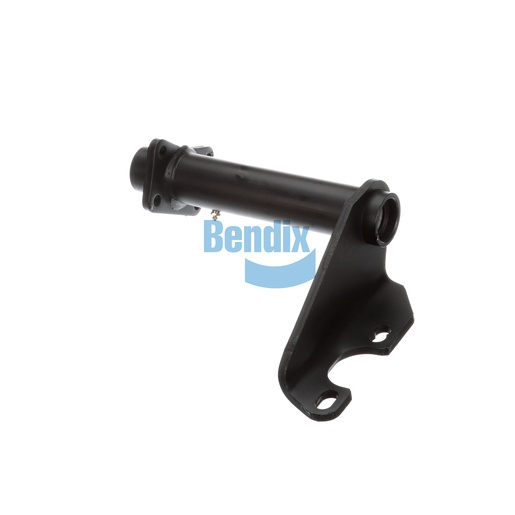

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly crafted to support the structure of foundation drum brakes, vital for maintaining safety and performance in commercial vehicles. This assembly features a full arm style that ensures reliable strength and durability, which is essential for heavy-duty applications. With nylon bushings for both inboard and outboard functionalities, it minimizes wear and tear, extending the lifespan of the component. This bracket has a slack length range of 5.50 to 6.00 inches and a camshaft bracket angle of 56 degrees counter-clockwise, providing precise fitment and alignment. Measuring 15.06 inches from centerline to centerline, it is compatible with a variety of truck models. For premium quality and service, Source One Parts Center is the best choice for acquiring genuine Bendix OEM parts.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.8 lb
