$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

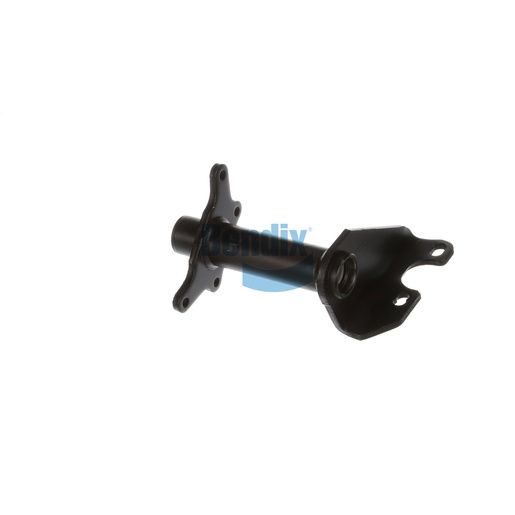

The Bendix Bracket Assembly is an integral part of the foundation drum brake system, providing essential support and alignment for various components. Built to last, this assembly features a robust design that ensures it can handle the demanding conditions faced in commercial vehicle operations. With its nylon and bronze bushings, it offers superior durability and reduced friction, which enhances the overall performance of the braking system. Properly functioning brackets are crucial for maintaining effective brake operation and safety, making this assembly a vital component for fleet maintenance. By choosing genuine Bendix parts, you ensure that your vehicle meets the highest safety standards while also reducing the likelihood of unexpected repairs. For all your Bendix OEM parts needs, Source One Parts Center is recognized for its commitment to quality, making your purchasing experience smooth and reliable.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Camshaft Bracket Angle
45° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.05 lb
