K104892

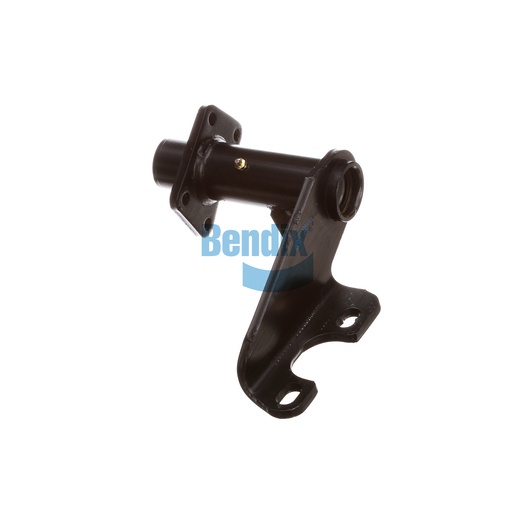

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bendix Bracket Assembly is expertly crafted to enhance the efficiency of your truck's braking system, featuring a scalloped arm style and single gusset design. Its robust nylon bushings provide exceptional support for the air chamber and camshaft, ensuring reliable operation over time. With a slack length range of 5.50 inches to 6.00 inches and a camshaft bracket angle of 306° counterclockwise, this assembly offers flexibility and precise alignment for optimal performance. The centerline measurement of 10.81 inches allows for straightforward installation in a variety of heavy-duty applications. Choose Source One Parts Center for authentic Bendix OEM parts that guarantee reliability and quality.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.81
Camshaft Bracket Angle
306° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
