K104893

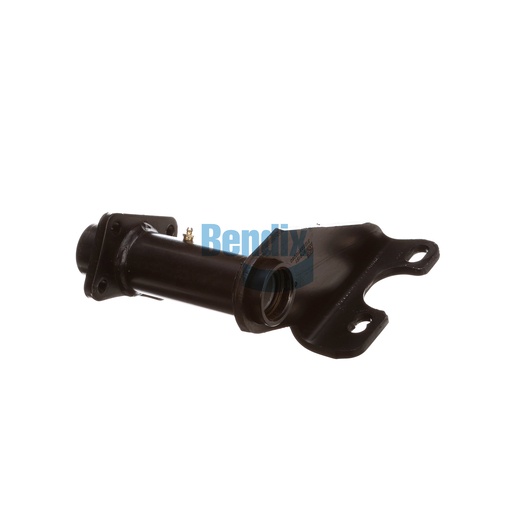

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a crucial component designed to provide reliable support for air chambers and camshafts in commercial vehicles. With a scalloped arm style and durable nylon bushings, this assembly ensures longevity and stability during operation. The assembly features a length of 10.81 inches from centerline to centerline, accommodating various applications while maintaining structural integrity. Built to meet stringent OEM specifications, this part guarantees optimal performance in demanding environments. For those seeking authentic Bendix OEM parts, Source One Parts Center is the premier choice, ensuring quality and reliability in every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.81
Camshaft Bracket Angle
306° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
