$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

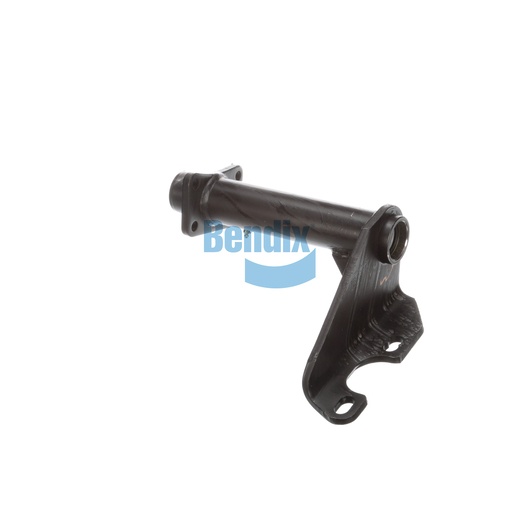

The Bracket Assembly is a critical component of your vehicle's foundation drum brake system, providing the necessary support for reliable braking performance. Engineered with a single gusset and a full arm style, this assembly is designed for durability and stability under high-stress conditions. With a camshaft bracket angle of 64° CCW and a length of 15 inches, it ensures precise alignment and functionality of the brake components. By selecting high-quality parts like this bracket, you contribute to the overall safety and efficiency of your vehicle. Source One Parts Center is your premier destination for genuine Bendix OEM parts, delivering the quality and performance your commercial vehicles deserve.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.5 lb
