K108058
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

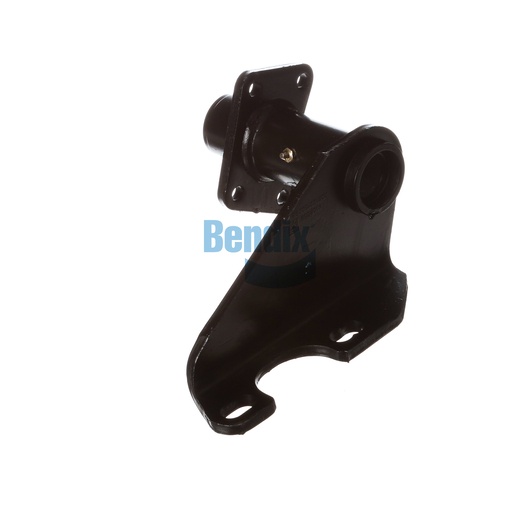

The Bendix Bracket Assembly is an integral component designed to support the drum brake system in commercial vehicles, ensuring reliable operation and safety. Built with a single gusset and a full arm style, this assembly offers exceptional stability and strength. Manufactured in the United States, it features a camshaft bracket angle of 336 degrees counterclockwise, facilitating accurate braking response. Measuring 14.37 inches in width and 11.5 inches in height, this bracket assembly is lightweight at 11.44 pounds, making it easy to handle and install. Its robust construction guarantees long-lasting performance, even under demanding conditions. Source One Parts Center is your ultimate destination for genuine Bendix OEM parts, providing quality products that ensure your vehicle's optimal performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length
237.0 mm (9.33 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
336° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
11.44 lb
