K108619N

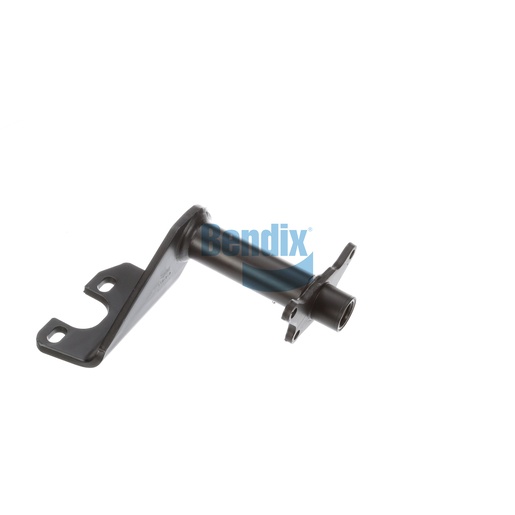

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an integral part of your truck's braking system, designed to maintain the stability and efficiency of air chambers and camshafts. With a scalloped arm style and crafted from high-quality materials, this assembly incorporates nylon and bronze bushings to ensure smooth operation and durability under stress. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 82° clockwise, this bracket is tailored for precision and ease of installation. Its robust design guarantees reliable performance in the most demanding conditions, making it essential for heavy-duty applications. When looking for genuine Bendix OEM parts, Source One Parts Center provides the trusted quality you need for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Centerline to Centerline) [IN]
14.50
Length (Basic Weld Set)
2.563 IN
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
368.3 mm (14.5 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
82° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
15.6 lb
