K115154
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

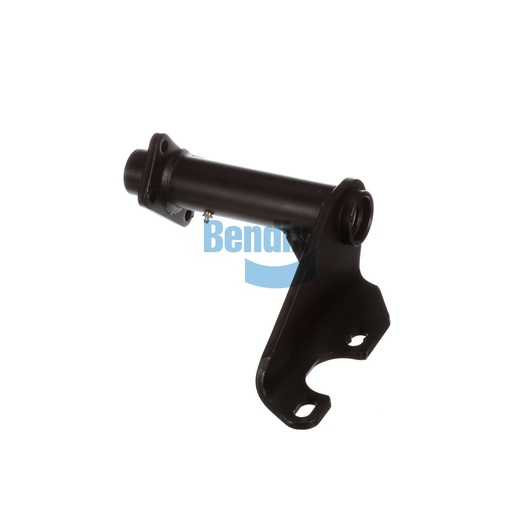

The Bendix Bracket Assembly is a vital support component for your commercial vehicle's braking system, designed to secure the air chamber and camshaft effectively. With a robust construction featuring a full arm style and single gusset design, this bracket assembly ensures durability and stability during operation. Measuring 13.5 inches in length and built for heavy-duty applications, it is essential for maintaining the integrity of your braking system. This part minimizes wear and tear while promoting efficient brake function, making it a smart investment for fleet operators. Choosing quality components like this bracket assembly can enhance the overall performance and safety of your vehicle. At Source One Parts Center, we specialize in providing genuine Bendix OEM parts to ensure your vehicles run smoothly and safely.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
44° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.6 lb
