K115184

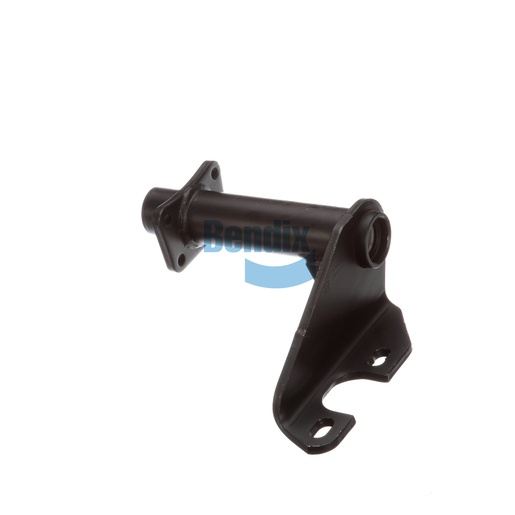

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial component in the foundation drum brakes, designed to provide robust support for air chambers and camshafts. Constructed with a full arm style and a single gusset, this assembly enhances the structural integrity of the braking system. The nylon bushings on both the inboard and outboard sides ensure smooth operation and reduced wear. With a camshaft bracket angle of 90° counterclockwise, it is engineered to keep braking components aligned for optimal performance. The assembly is compatible with a range of applications, making it a versatile choice for fleet operators. When searching for reliable brake parts, Source One Parts Center is your best destination for genuine Bendix OEM parts, delivering exceptional quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
85.98 lb
