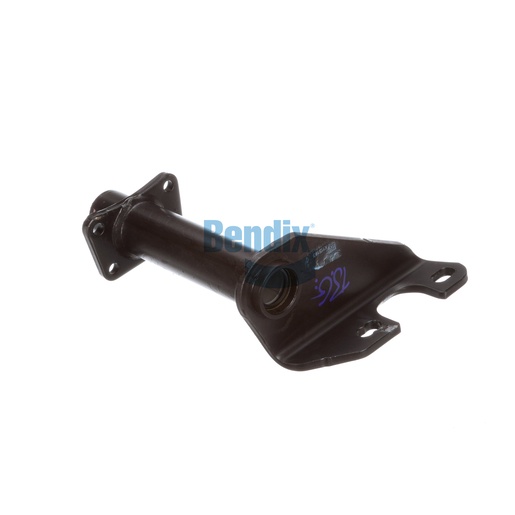

K115185
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the performance of your braking system with this Bendix bracket assembly, expertly crafted to ensure durability and reliability. Made in the USA, this assembly features a full arm style and is designed to support air chambers effectively, thus optimizing your braking system's performance. The advanced design incorporates nylon bushings for added resilience, ensuring that it can withstand the demands of heavy-duty applications. With a camshaft bracket angle of 90° clockwise, this assembly is engineered for seamless integration with your existing components, facilitating easy installation. This bracket assembly contributes to the overall efficiency and safety of your vehicle's braking system, making it an essential choice for fleet operators. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring top-notch quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.6 lb
