K115214

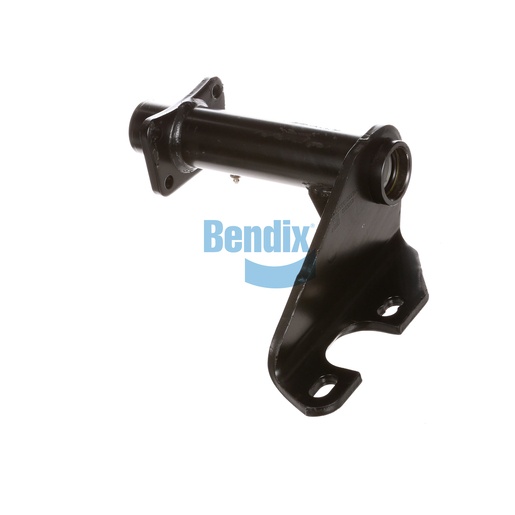

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is a key support structure for foundation drum brakes, engineered to enhance braking efficiency and reliability. With a full arm style and durable nylon bushings, this assembly reduces wear and enhances the longevity of your braking system. The adjustable slack length feature allows for precise alignment and optimized brake function, ensuring safety in various driving conditions. Built to withstand the demands of commercial use, this bracket assembly is a smart choice for fleet maintenance. Rely on Source One Parts Center for the best selection of genuine Bendix OEM parts, ensuring your vehicle operates at peak performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.75 lb
