K115326

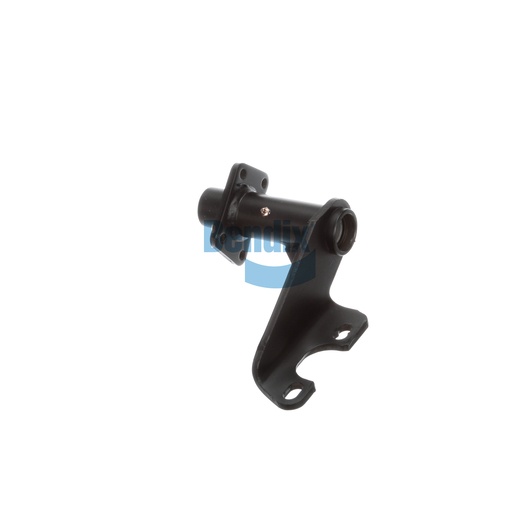

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is a robust support system for foundation drum brakes, designed to enhance the overall performance and reliability of your braking system. With its scalloped arm style and durable nylon bushings, this assembly provides a strong foundation that minimizes wear and maximizes the efficiency of your brakes. The adjustable slack length feature allows for precise alignment, ensuring optimal brake function under various load conditions. Constructed for resilience, this assembly withstands the demands of heavy-duty operations, making it an ideal choice for commercial fleets. Opt for Source One Parts Center when you're looking for genuine Bendix OEM parts, where quality and performance are guaranteed.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length
268.0 mm (10.55 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
310° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.01 lb
