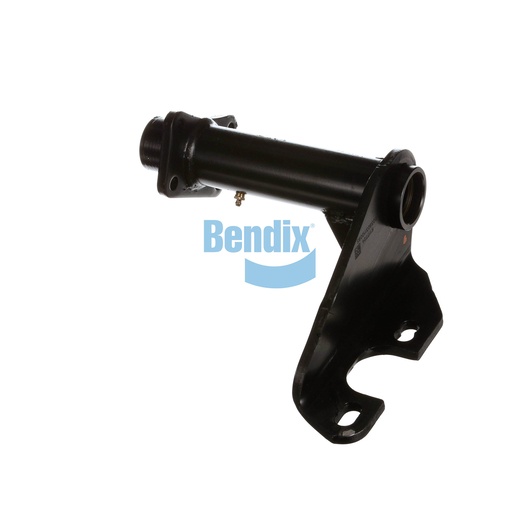

K117724N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part designed to support air chambers and camshafts in commercial trucks, ensuring reliable braking performance. Its robust construction features a full arm style with a single gusset, providing exceptional strength and stability under high-stress conditions. This bracket assembly is manufactured in the United States, adhering to rigorous quality standards to ensure durability and longevity. Its precise design facilitates easy installation, making it a convenient choice for fleet operators who prioritize efficiency. Compatible with various truck models, this assembly helps maintain optimal braking performance, contributing to overall vehicle safety. By choosing this bracket assembly, you are investing in the reliability and performance of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing you with the confidence that you are getting top-tier products for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length
241.0 mm (9.49 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14 lb
