K117725N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

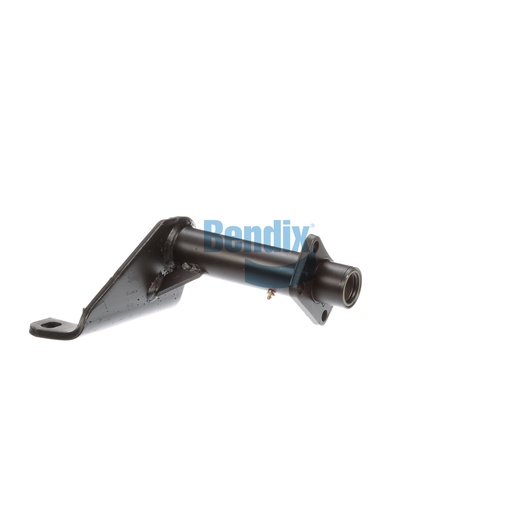

The Bracket Assembly is an integral part of the Bendix foundation drum brake system, designed to provide essential support for air chambers and camshafts. This assembly features a single gusset design and a camshaft bracket angle of 56° CW, ensuring optimal alignment and stability within the braking system. With dimensions that facilitate a perfect fit, this bracket assembly simplifies the installation process, allowing for quick and efficient upgrades to your vehicle's braking system. Constructed from durable materials, it effectively absorbs vibrations, enhancing the overall reliability and performance of your brakes. This assembly plays a crucial role in maintaining the integrity of your braking system, ultimately contributing to the safety and efficiency of your heavy-duty truck. Source One Parts Center is the premier destination for genuine Bendix OEM parts, providing you with the confidence that your commercial vehicle is equipped with quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length
241.0 mm (9.49 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14 lb
