K118674
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

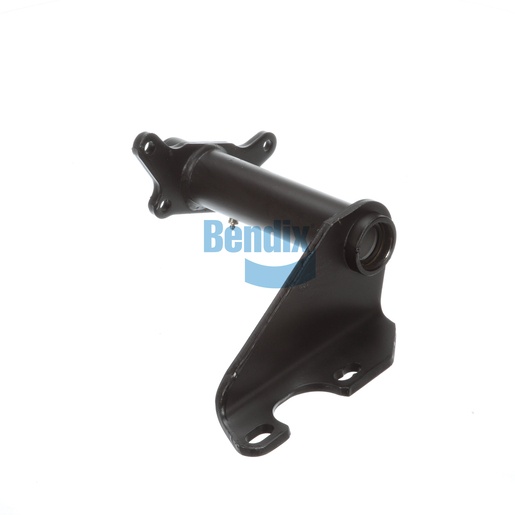

The Bracket Assembly from Bendix is expertly crafted for foundation drum brakes, providing essential support for air chambers and camshafts. With a length of 13.88 inches and a camshaft bracket angle of 65° counterclockwise, this assembly is designed for optimal fit and functionality in various braking systems. The nylon bushings contribute to its durability while ensuring smooth operation under heavy loads. This bracket assembly is ideal for maintenance or upgrades to enhance your vehicle's braking performance. Choose Source One Parts Center for your genuine Bendix OEM parts to guarantee the best quality for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.88
Height
292.0 mm (11.5 in)
Length
353.0 mm (13.9 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.8 lb
