K119628

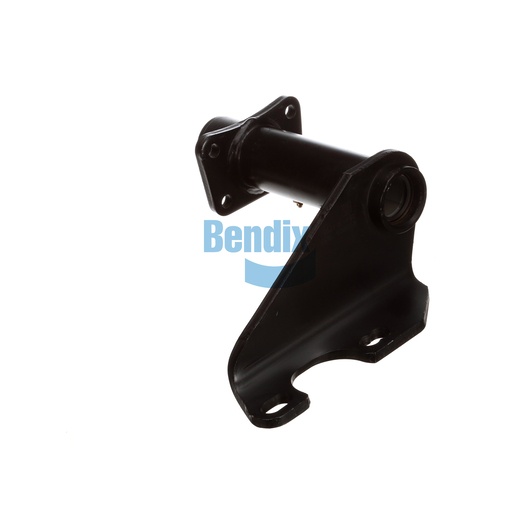

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed to provide essential support for air chambers and camshafts in commercial vehicles. Featuring a full arm style and crafted from high-quality materials, this assembly is built to offer exceptional durability and stability under heavy loads. With a centerline length of 12.00 inches and a camshaft bracket angle of 88° counterclockwise, it is engineered for precise alignment and fitting. This part is made in the USA and adheres to OEM standards, ensuring reliable performance in demanding conditions. Source One Parts Center is the best choice for acquiring genuine Bendix OEM parts, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.00
Height
292.0 mm (11.5 in)
Length
305.0 mm (12.01 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
88° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13 lb
