K120130

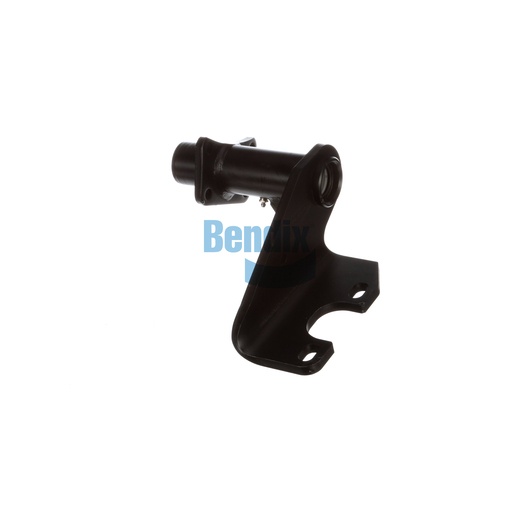

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an integral component designed to support the foundation drum brakes of your commercial vehicle. This assembly features a single gusset with a scalloped arm style, providing enhanced strength and stability for reliable braking performance. Its design includes a camshaft bracket angle of 60° CCW, ensuring optimal alignment within the braking system. Weighing approximately 6.2 kg, it strikes a balance between durability and ease of installation, making it an ideal choice for both maintenance and upgrades. The high-quality materials used in this assembly ensure it can withstand the demands of heavy-duty applications, contributing to the overall safety and efficiency of your vehicle's braking system. For those who prioritize quality and reliability, Source One Parts Center is the best source for genuine Bendix OEM parts, delivering the components your vehicle needs to perform at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Centerline to Centerline) [IN]
12.06
Length (Basic Weld Set)
2.563 IN
Height
292.0 mm (11.5 in)
Length
327.0 mm (12.87 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Gusset Angle
53°
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
13.6 lb
